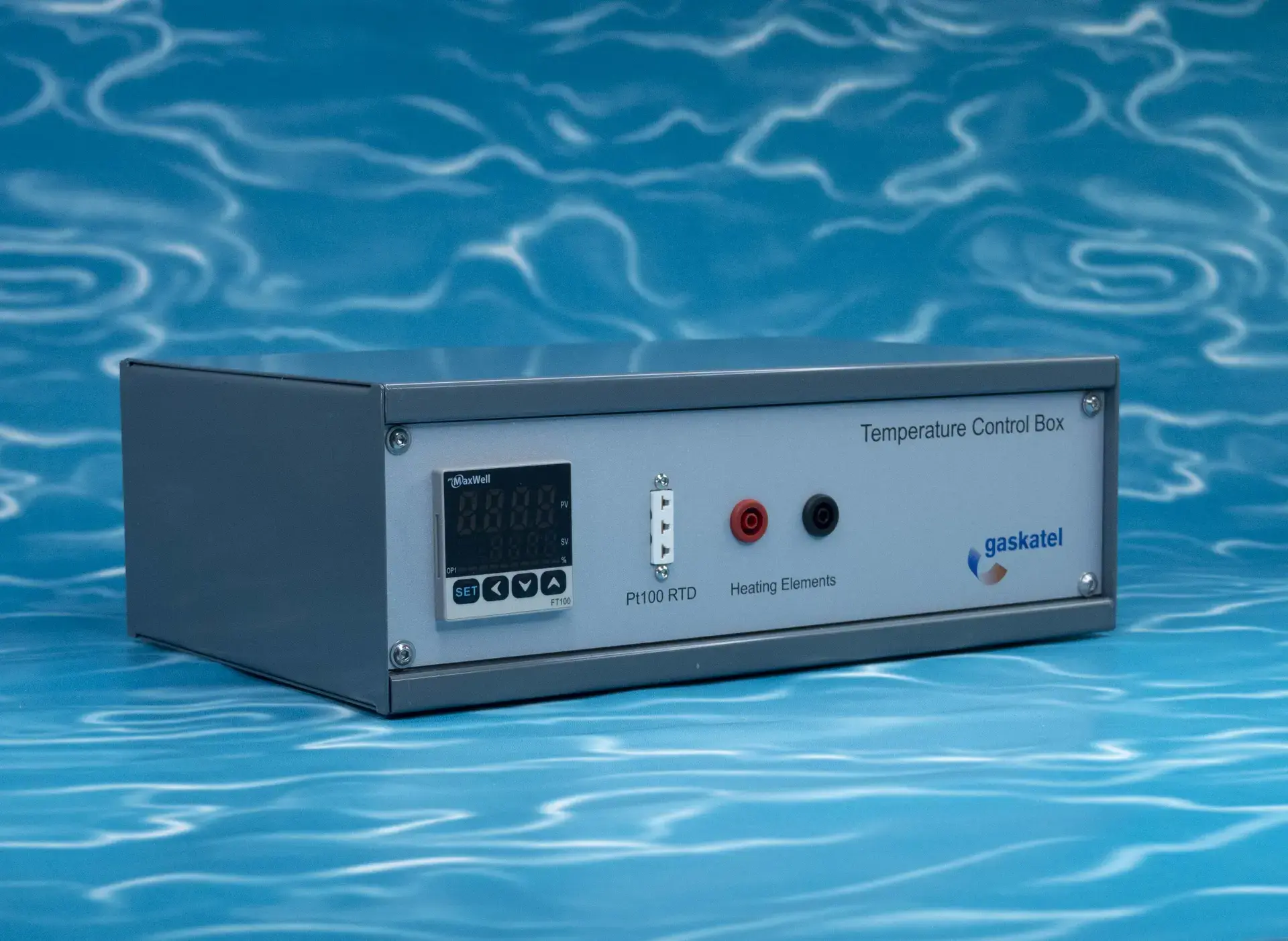

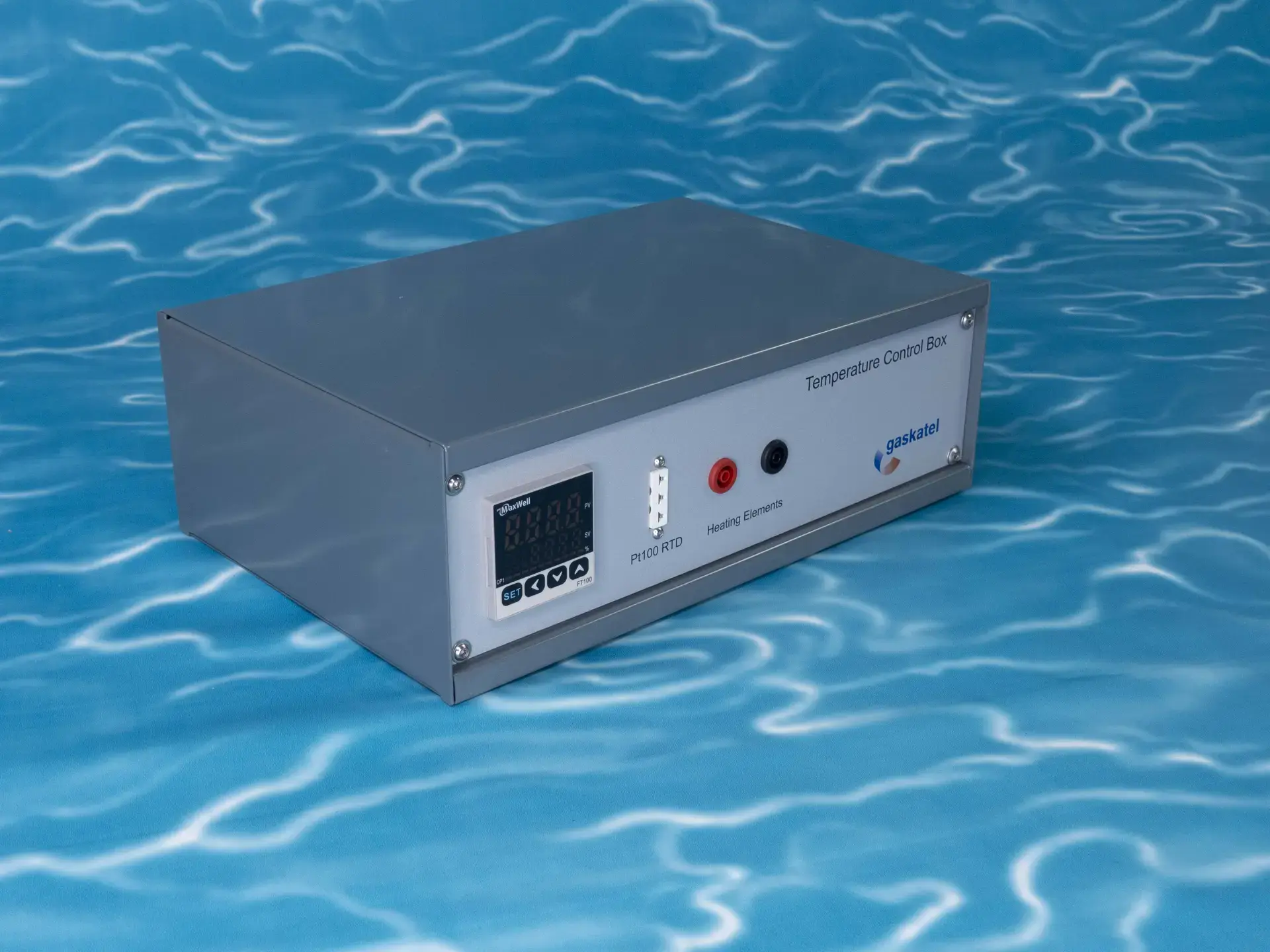

Temperature Control Box for FlexCell (GAS-83900-v03)
OVERVIEW
The Temperature Control Box provides PID temperature control for FlexCell electrochemical test cells. It directly powers the cells’ integrated heating elements using 24 VDC, eliminating the need for a heat-transfer liquid that could contaminate the electrolyte.
The controller supports measurements up to 80°C with FlexCell-PP and up to 150°C with FlexCell-PTFE. PID control maintains a stable temperature within 0.1°C. The free GCB software can be used to operate experiments and store data in an SQL database.
Item No: GAS-83900-v03
Brand: Gaskatel
Country of origin: Germany
KEY FEATURES
PID temperature control for FlexCell electrochemical test cells
Compatible with FlexCell-PP and FlexCell-PTFE
Direct 24 VDC electrical heating
No heat-transfer liquid required
Stable temperature control within 0.1°C
Free GCB software for experiment control and data storage
APPLICATIONS
Temperature-controlled measurements with FlexCell-PP
High-temperature measurements with FlexCell-PTFE
Control of the integrated FlexCell heating elements
Recording and storing temperature data during electrochemical experiments
Supplying an analogue temperature signal to compatible measurement equipment
TECHNICAL SPECIFICATIONS
Specification | Details |
Control method | PID temperature control |
Power supply | 24 V, 500 W |
Heating method | Direct electrical heating at 24 VDC |
Maximum temperature with FlexCell-PP | 80°C |
Maximum temperature with FlexCell-PTFE | 150°C |
Temperature stability | Within 0.1°C |
Output 1 | RS-485 |
Output 2 | Analogue signal, 0–10 V corresponding to 0–200°C |
Software | Free GCB software |
Data storage | SQL database |
Weight | 3625 g |
PACKAGE CONTENTS
Quantity | Item |
1 | Temperature Control Box |
1 | FEP-insulated Pt100 resistance temperature detector (item 83911) |
2 | Red test leads (item 89031) |
2 | Black test leads (item 89032) |
1 | RS-485 to USB 2.0 adaptor (item 80635) |
1 | Power cord |
1 | Manual |
