MOC Manganese Dioxide Air Electrode with PTFE Layer (GAS-82011)
OVERVIEW

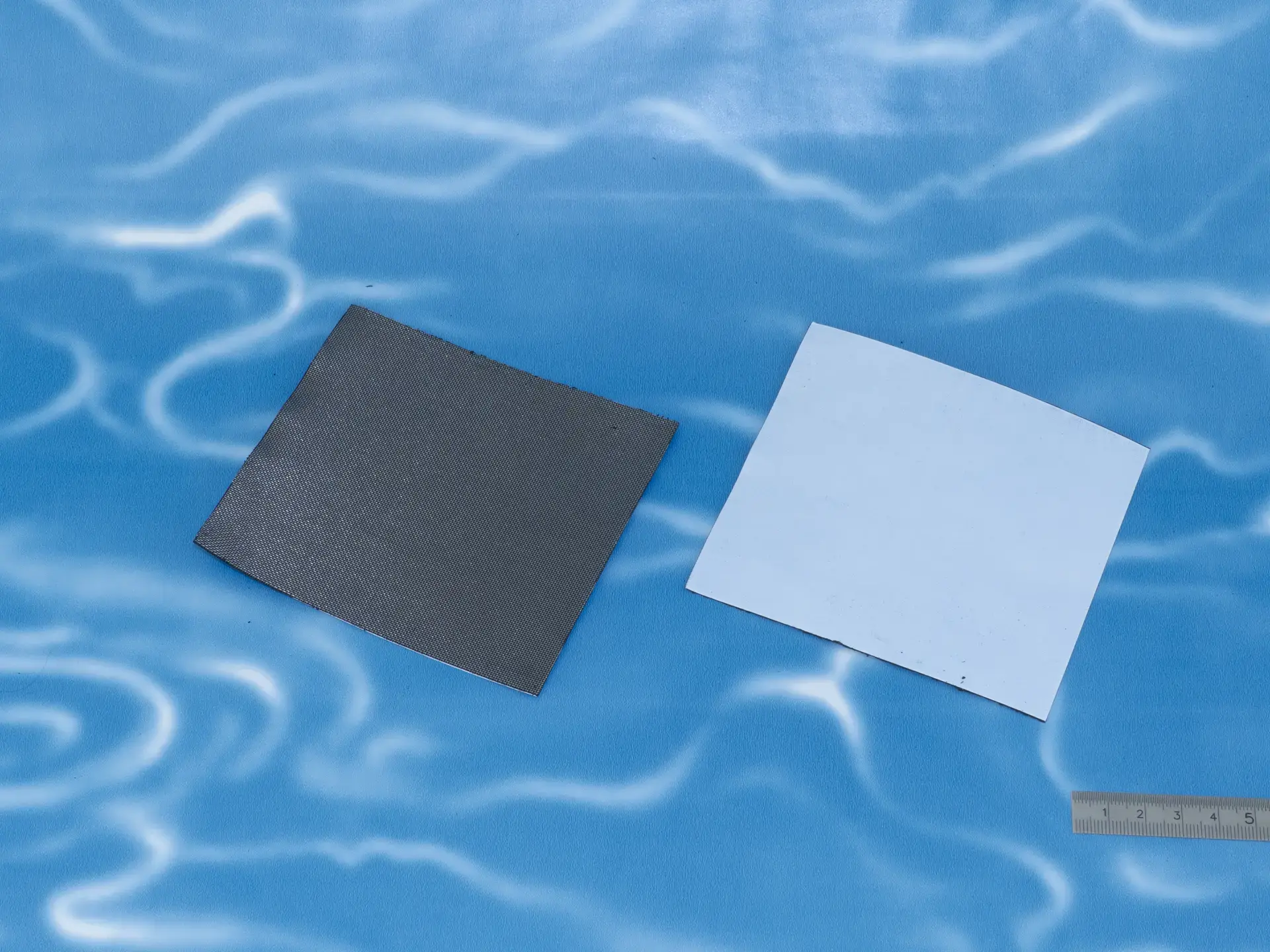

MOC is a gas-diffusion air electrode with a manganese dioxide catalyst, PTFE binder and nickel-mesh current collector. This version incorporates a PTFE layer that is impermeable to aqueous electrolytes and is designed for oxygen consumption through the oxygen reduction reaction (ORR).
The electrode is supplied as one 10 cm × 10 cm piece with a thickness of 400 µm. It is intended for zinc-air batteries, other metal-air batteries and alkaline fuel cells.
Item No: GAS-82011
Brand: Gaskatel
Country of origin: Germany
KEY FEATURES
PTFE layer impermeable to aqueous electrolytes
Manganese dioxide catalyst
Nickel-mesh current collector
PTFE binder content of 20%
Current density of 200 mA/cm² at 0.75 V vs RHE
Supplied as a 10 cm × 10 cm electrode piece
APPLICATIONS
Oxygen reduction reaction
Oxygen-consuming electrochemical processes
Zinc-air batteries
Other metal-air batteries
Alkaline fuel cells
TECHNICAL SPECIFICATIONS
Specification | Details |
Electrode type | Air gas-diffusion electrode with PTFE layer |
Catalyst | Manganese dioxide |
Binder | PTFE, 20% |
Current collector | Nickel mesh |
PTFE-layer property | Impermeable to aqueous electrolytes |
Thickness | 400 µm |
Width | 10 cm |
Length | 10 cm |
Delivery form | One piece |
Optimal electrolyte temperature | Below 50°C |
Optimal electrolyte pH | Above pH 7 |
Oxygen-reduction current density | 200 mA/cm² at 0.75 V vs RHE |
Weight | 10 g |
Alternative version | Available without a PTFE layer; thickness 350 µm (GAS-82010) |
