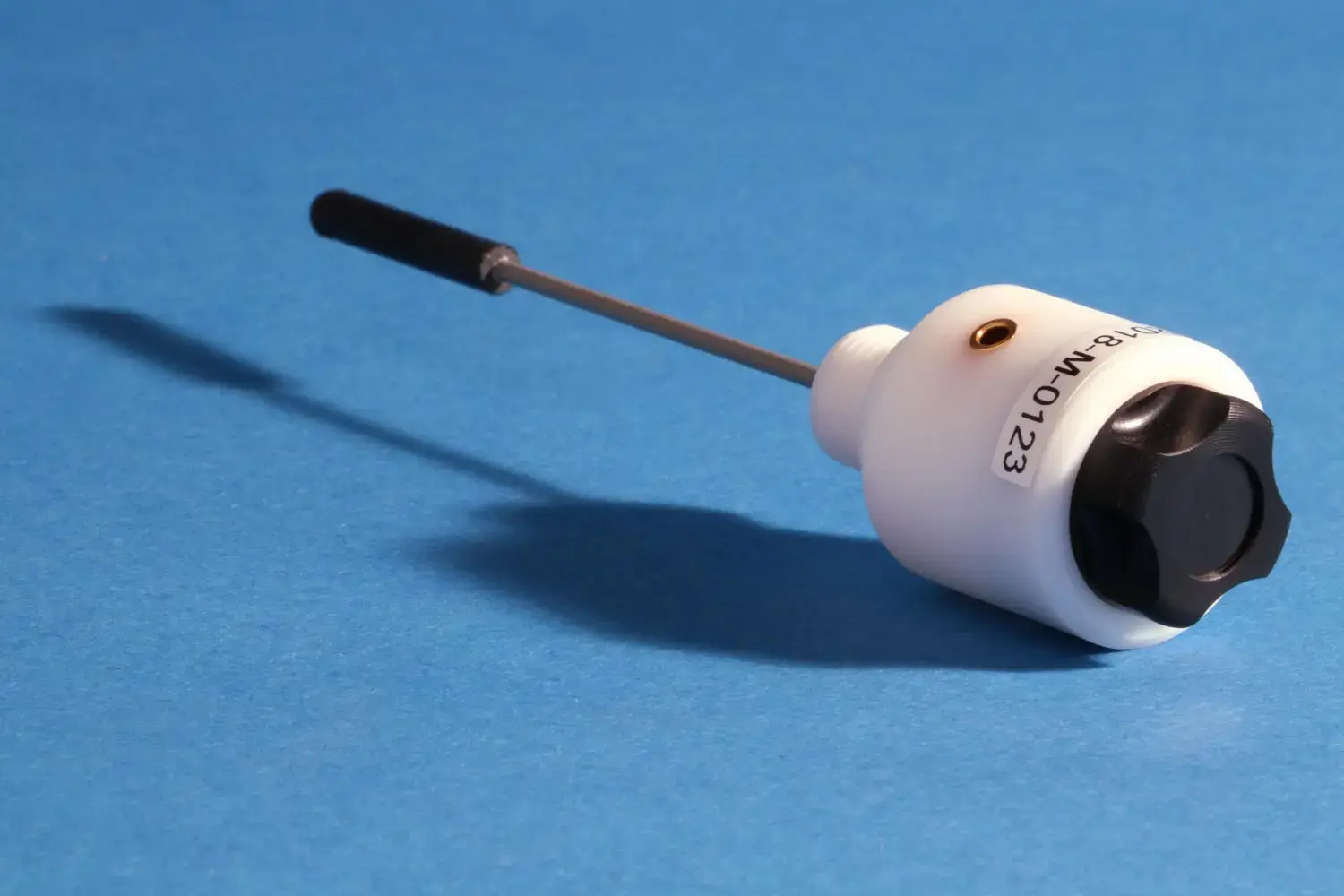

Mini-HydroFlex Hydrogen Reference Electrode (GAS-81020-v02)
OVERVIEW
Mini-HydroFlex is a reduced-size hydrogen reference electrode developed for applications in confined spaces. Its structure and function correspond to the HydroFlex electrode, but its shaft diameter is only 1.6 mm. Mini-HydroFlex can be used in almost any electrolyte and is recommended for use with FlexCell and ElyFlow electrochemical cells.
The electrode contains a replaceable internal hydrogen source and no internal electrolyte, eliminating ion discharge and diffusion potential while preventing contamination of the measuring electrolyte. It is particularly suitable for corrosion measurements and long-term measurements of up to 12 months.
Item No: GAS-81020-v02
Brand: Gaskatel
Country of origin: Germany
KEY FEATURES
Compact hydrogen reference electrode for confined spaces
1.6 mm shaft diameter
Recommended for use with FlexCell and ElyFlow
Replaceable internal hydrogen cell
No internal electrolyte, ion discharge or diffusion potential
Suitable for long-term measurements of up to 12 months without user intervention
APPLICATIONS
Electrochemical potential measurements
Corrosion measurements
Applications in confined spaces
Measurements using FlexCell and ElyFlow
Measurements in concentrated alkaline solutions
Measurements in concentrated acids, hydrofluoric acid and fluoride-containing media
TECHNICAL SPECIFICATIONS
Specification | Details |
Shaft material | PEEK |
Head material | PTFE |
Shaft diameter | 1.6 mm |
Shaft length | 50 ± 1 mm; custom lengths available at additional charge |
Head diameter | 20 mm |
Head height | 30 mm plus 5.5 mm for the hydrogen-cell holder |
Seal material | Fluor rubber |
Thread | G1/8″ |
Electrical connection | Gold-plated socket for 2 mm plugs |
Sensor element | Palladium gas-diffusion electrode; sideward position |
Hydrogen source | Replaceable hydrogen cell (item 80521) |
Maximum temperature | 120°C when only the PEEK shaft is exposed to this temperature |
Maximum operating period | Up to 12 months |
Weight | 49 g |
Package contents | 1 × Mini-HydroFlex hydrogen reference electrode |
1 × Hydrogen cell (item 80521) | |
1 × Activation sticker (item 80077) | |
1 × Manual | |
Recommended cells | FlexCell and ElyFlow |
Additional accessory | Test lead required when using Mini-HydroFlex with FlexCell or ElyFlow |
Operational note | The hydrogen source continues operating after activation even when measurements are not being performed |
