Metal Wire Auxiliary Electrode – 50HX15 0.6/250 mm (RED-E-A/O-50HX15)
OVERVIEW

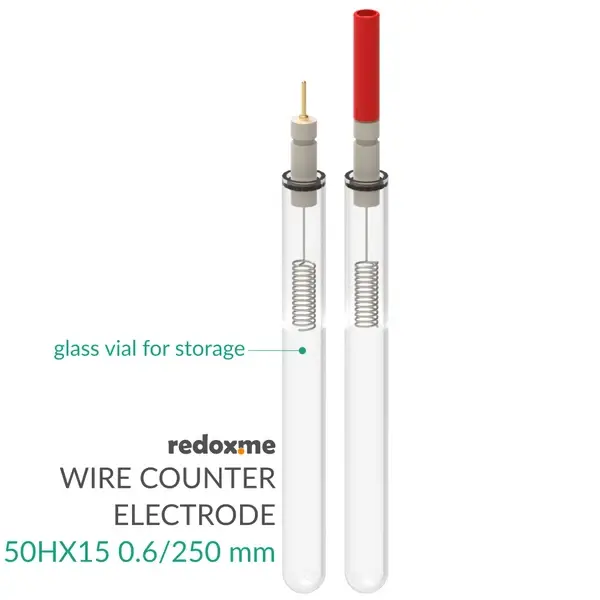

The 50HX15 is a helical metal-wire auxiliary electrode used as the counter electrode in an electrochemical cell. It can be configured for water-based or organic solvent electrolytes, with platinum or gold wire and a choice of electrical connector.
Item No: RED-E-A/O-50HX15
Brand: redox.me
Country of origin: Sweden
KEY FEATURES
Metal-wire counter (auxiliary) electrode for electrochemical cells
Choice of platinum (99.9%) or gold wire
Water-based electrolyte configuration with FKM O-ring
Organic solvent electrolyte configuration with FFKM O-ring
Choice of 1 mm gold-plated pin or 4 mm female banana socket
PEEK plug and 12-turn wire helix
APPLICATIONS
Counter electrode in laboratory electrochemical cells
Measurements using water-based electrolytes
Measurements using organic solvent electrolytes
TECHNICAL SPECIFICATIONS
Specification | Details |
Electrode type | Metal-wire counter (auxiliary) electrode |
Wire material options | Platinum (99.9%) or gold |
Electrolyte options | Water-based or organic solvent |
O-ring options | FKM for water-based electrolyte; FFKM for organic solvent electrolyte |
Connector options | 1 mm gold-plated pin or 4 mm female banana socket |
Plug material | PEEK |

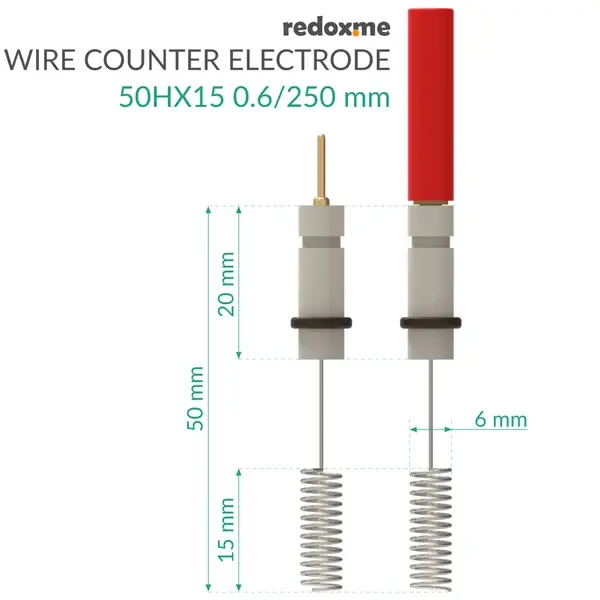

Wire diameter | 0.6 mm |
Total wire length | 250 mm: 215 mm helix and 35 mm straight wire |
Helix inner diameter | 4.8 mm |
Helix outer diameter | 6 mm |
Number of turns | 12 |
Configuration item numbers
Electrolyte | Wire | Connector | Item No |
Water-based | Platinum | 1 mm gold-plated pin | RED-E-A-50HX15_Pt-1mm |
Organic solvent | Platinum | 1 mm gold-plated pin | RED-E-O-50HX15_Pt-1mm |
Water-based | Gold | 1 mm gold-plated pin | RED-E-A-50HX15_Au-1mm |
Organic solvent | Gold | 1 mm gold-plated pin | RED-E-O-50HX15_Au-1mm |
Water-based | Platinum | 4 mm female banana socket | RED-E-A-50HX15_Pt-4mm_B |
Organic solvent | Platinum | 4 mm female banana socket | RED-E-O-50HX15_Pt-4mm_B |
Water-based | Gold | 4 mm female banana socket | RED-E-A-50HX15_Au-4mm_B |
Organic solvent | Gold | 4 mm female banana socket | RED-E-O-50HX15_Au-4mm_B |
