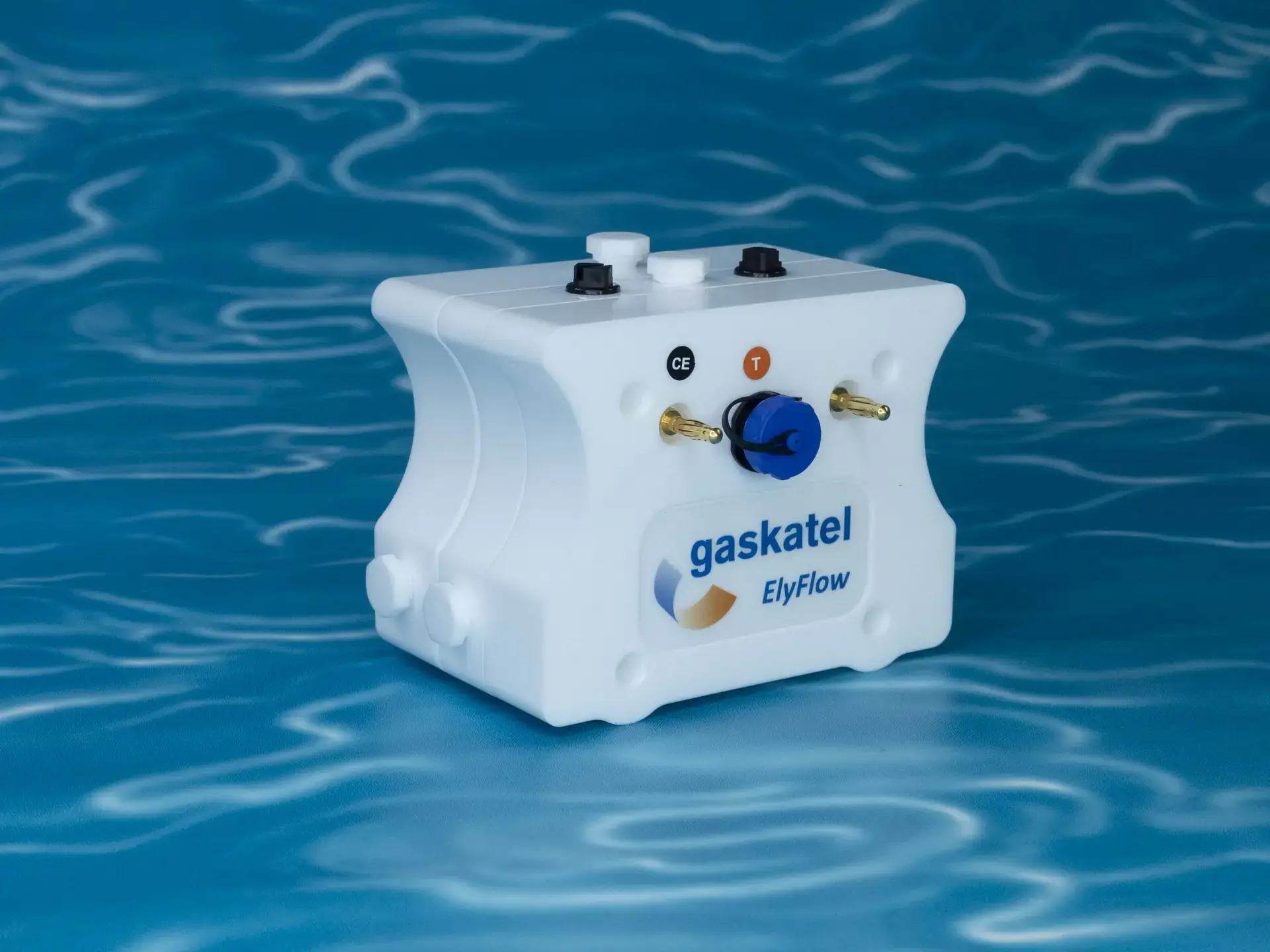

ElyFlow PTFE Electrochemical Test Cell (GAS-83400-v03)
OVERVIEW
ElyFlow PTFE is a three-electrode electrochemical test cell designed for electrolyte circulation. It accommodates flat samples such as metal sheets, foils and gas-diffusion electrodes. The fixed distances between the working, counter and reference electrodes provide defined geometric conditions for comparable measurements.
The cell incorporates a laterally positioned Haber-Luggin capillary and supports gas supply to the working electrode. External vessels and pumping systems can be used to increase the available electrolyte volume and support long-duration measurements. The PTFE construction provides chemical resistance across a pH range of -2 to 16 when the appropriate counter electrode is selected.
Item No: GAS-83400-v03
Brand: Gaskatel
Country of origin: Germany
KEY FEATURES
Designed for electrochemical measurements with electrolyte circulation
Three-electrode configuration with defined electrode geometry
Laterally positioned Haber-Luggin capillary
Gas supply to the working electrode
10 cm2 active area for flat samples
Integrated 70 W heating element for operation up to 90°C with electrolyte flow or 150°C without flow
APPLICATIONS
Long-duration electrochemical measurements with electrolyte circulation
Gas-diffusion electrode testing
Testing of metal sheets, foils and other flat materials
Electrolysis and other gas-generating electrochemical processes
CO2-reduction experiments
Membrane-separated anolyte and catholyte configurations
Experiments requiring continuous removal of gaseous or liquid reaction products
TECHNICAL SPECIFICATIONS
Specification | Details |
Cell configuration | Three-electrode setup |
Cell material | PTFE (polytetrafluoroethylene) |
pH range | pH -2 to 16, depending on the counter electrode |
Nickel counter electrode | For pH 10 to 16 (item 80178) |
MMO counter electrode | For pH -2 to 10 (item 80182) |
O-ring material | EPDM |
O-rings for acidic media | Enclosed FKM O-rings should replace the installed EPDM O-rings |
Sealing material | Silicone |
Optional sealing | Graphite sealing for poorly conductive electrodes |
Electrolyte volume | 25 mL |
Sample size | 6.4 cm × 7 cm |
Active area | 10 cm2 |
Heating element | 70 W |
Maximum temperature with electrolyte flow | 90°C |
Maximum temperature without electrolyte flow | 150°C |
Electrolyte circulation | Supported |
Measurement duration | Several hundred hours possible, depending on the external electrolyte reservoir |
Compartments | Two or three separate electrolyte compartments can be implemented |
Compatible reference electrode | Mini-HydroFlex |
Incompatible reference electrode | HydroFlex |
Weight | 2400 g |
PACKAGE CONTENTS
Quantity | Item |
1 | ElyFlow PTFE test cell |
1 | PTFE working-electrode holder (item 83420-v02-PTFE) |
1 | PTFE analyte compartment (item 83430) |
1 | PTFE counter-electrode holder (item 83410) |
1 | Integrated heating element |
1 | Integrated nickel counter electrode (item 80178) |
1 | MMO counter electrode (item 80182) |
2 | Red test leads (item 89017) |
2 | Black test leads (item 89019) |
2 | Red connection coupling adaptors (item 89037) |
2 | Black connection coupling adaptors (item 89038) |
1 | Hexagon socket spanner, 6 × 125 mm (item 83011) |
2 | FKM O-rings, 39.69 × 3.53 mm (item 80357) |
1 | FKM O-ring, 53.57 × 3.53 mm (item 80356) |
1 | Manual |
