BEC 50 mL Basic Electrochemical Cell (RED-C-A/O-BEC-50)
OVERVIEW

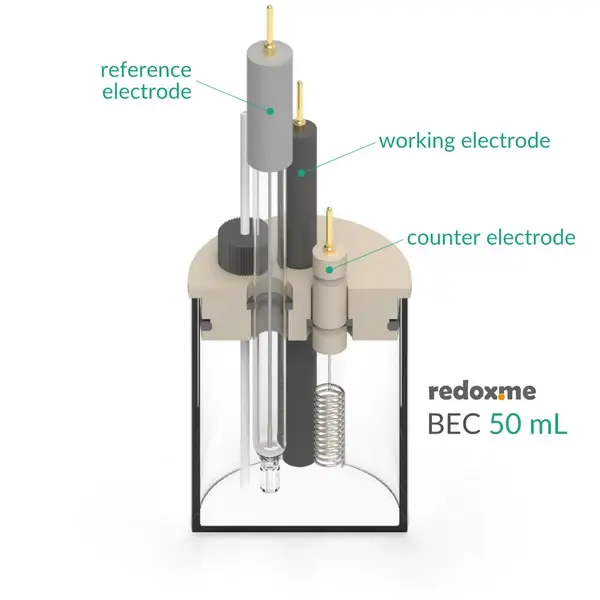

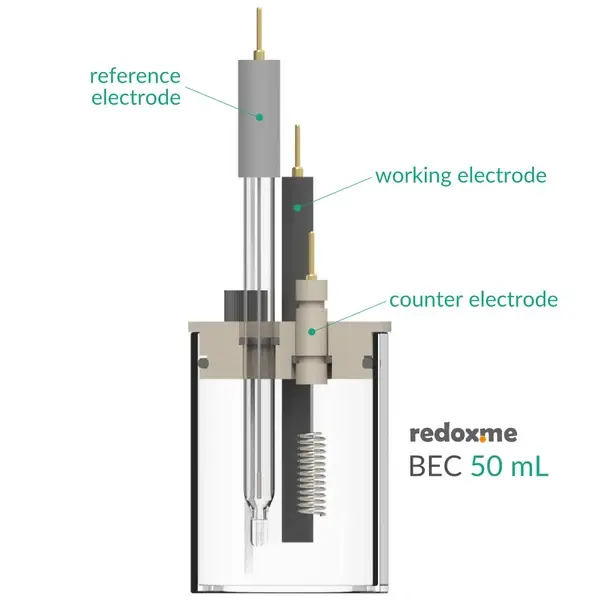

The BEC 50 mL is a stationary-solution electrochemical cell for measurements using 6 mm rod or disc electrodes, thin films deposited on flat substrates, or membranes. The cell accommodates two- or three-electrode setups, with electrodes mounted in its top casing. It has glass and PEEK components and a gas-tight construction. Select the water-based or organic solvent electrolyte option to obtain the corresponding O-rings.
Item No: RED-C-A-BEC-50 (water-based electrolyte); RED-C-O-BEC-50 (organic solvent electrolyte)
Brand: redox.me
Country of origin: Sweden
KEY FEATURES
Maximum electrolyte volume of 50 mL
Accommodates two- or three-electrode setups
Accepts 6 mm rod or disc electrodes
Supports thin films on flat substrates and membranes using a clip electrode
Glass and PEEK cell components
Gas-tight construction allows inert-gas bubbling through the electrolyte
APPLICATIONS
Electrochemical measurements using rod or disc electrodes
Measurements of thin films deposited on flat substrates
Measurements using membrane electrodes
Experiments requiring removal or exclusion of oxygen and water by bubbling an inert gas through the electrolyte
TECHNICAL SPECIFICATIONS
Specification | Details |
Cell type | Stationary-solution basic electrochemical (electrolytic) cell |
Maximum electrolyte volume | 50 mL |
Electrode plug diameter | 6 mm |
Electrode setup | Two or three electrodes |
Cell component materials | Glass and PEEK |
Construction | Gas-tight |
Package contents | 1 × Lid (item 0011CPEMA); 1 × Glass chamber; 1 × Plug |
Electrolyte option | O-ring material | Item No |
Water-based electrolyte | EPDM | RED-C-A-BEC-50 |
Organic solvent electrolyte | FFKM | RED-C-O-BEC-50 |
